SmartD

The Clean Power VFD

The SmartD Clean Power Variable Frequency Drive (VFD) isn’t just efficient – it’s a revolution in motor control. Using a pure sine wave, it minimizes harmonic distortion, extending equipment life and maximizing uptime.

This versatile VFD cuts across industries – from infrastructure and utilities to agriculture, mining, and beyond. By optimizing motor efficiency and minimizing wear, Clean Power VFD helps businesses achieve their sustainability goals: reduced energy consumption, lower costs, and a smaller carbon footprint. The result? Unmatched productivity and efficiency.

Ultra-low Harmonics

Clean Power VFD offers ultra-low harmonics, reducing electrical noise and increasing energy efficiency for your equipment.

Filter-Less

Clean Power VFD is filter-less, providing cost-effective and maintenance-free operation for your equipment.

Active Front End (AFE)

Clean Power VFD features an active front end, enabling power factor near unity, ultra-low harmonics and regenerative braking for improved energy efficiency.

Space Divided By 2

Clean Power VFD being of compact design, and eliminating the need for filters, saves up to 50% of space and simplifies equipment wiring.

Clean Sine Wave

Clean Power VFD using the last technology of electronic power components, patented algorithm and embedded filters, it produces a clean sine wave.

Extended Motor Lifetime

Clean Power VFD’s advanced performances reduce motor insulation stress, bearing damage, and electrical noise for a longer motor lifetime.

SmartD Clean Power VFD Technology

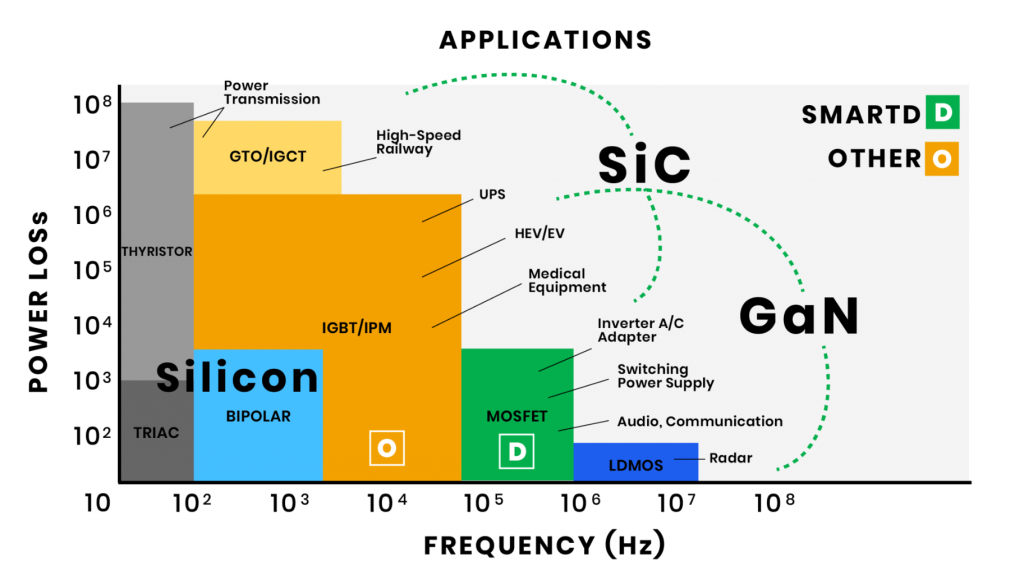

Wide-Bandgap (WBG) Transistors: Uses GaN and SiC for faster switching and minimal loss, boosting efficiency while reducing torque ripple.

Multi-Level Inverters (MLI): Improves harmonic content and lowers $dv/dt$, protecting motor insulation and extending equipment life.

Advanced Control Algorithms: Proprietary software enables sensor-less VFD control and reduces the need for bulky passive components.

Integrated “Clean Power”: Combines power quality features into one compact unit, ensuring IEEE 519 compliance without external filters.

Watch the Clean Power VFD Video

SmartD Technologies, a Montreal-based startup, is rapidly disrupting the variable frequency drive (VFD) market with their Clean Power VFD, the smallest, fastest, and smartest on the market. Unlike traditional VFDs that utilize outdated technology, SmartD’s Clean Power VFD leverages innovative Silicon Carbide (SiC) technology to deliver unmatched performance and value.

SDB-1-2110-A

Integrated Active Front End: Yes
Kilowatt: 11 kW
Horsepower: 15 HP
Amperes: 22 A
Volts: 400/480 V

SDB-1-2150-A

Integrated Active Front End: Yes
Kilowatt: 15 kW
Horsepower: 20 HP
Amperes: 28 A
Volts: 400/480 V

SDB-1-2185-A

Integrated Active Front End: Yes
Kilowatt: 18.5 kW
Horsepower: 25 HP
Amperes: 35 A
Volts: 400/480 V

SDB-1-2450-A

Integrated Active Front End: Yes
Kilowatt: 45 kW
Horsepower: 60 HP
Amperes: 85 A
Volts: 400/480 V

Frequently Asked Questions

What is a Variable Frequency Drive?

A variable frequency drive (VFD) is an electronic device that controls electric motor speed by varying the frequency and voltage supplied to the motor.

A VFD adjusts the motor’s speed to match the load requirement, this helps to drastically reduce energy consumption.

Other names for a VFD are variable speed drive, adjustable speed drive, adjustable frequency drive, AC drive, and inverter.

Why is the SmartD Clean Power VFD the right choice?

SmartD’s Clean Power variable frequency drive generates pure-sine electrical signals in a package half the size that is twice as efficient.

Forget messy cables and bulky filters. Experience Clean Power in a compact footprint.

How much time does the SmartD Clean Power VFD take to set up?

3 cables in, 3 cables out. That’s it. Set it up and let it do its thing in under 30 minutes.

Will the SmartD Clean Power VFD work with our existing systems?

Yes, SmartD Clean Power VFD are Iot, BMS, and SCADA ready. Ethernet and Modbus connectivity for integration to the Cloud, BMS, and SCADA systems.

Is the SmartD Clean Power VFD available for purchase?

Yes, the SmartD VFD is available for purchase at MH&W Direct.

Upgrade your systems with SmartD Clean Power VFDs from MH&W to ensure peak performance and longevity. Request an RFQ today or secure your hardware directly through our online store.
